Description

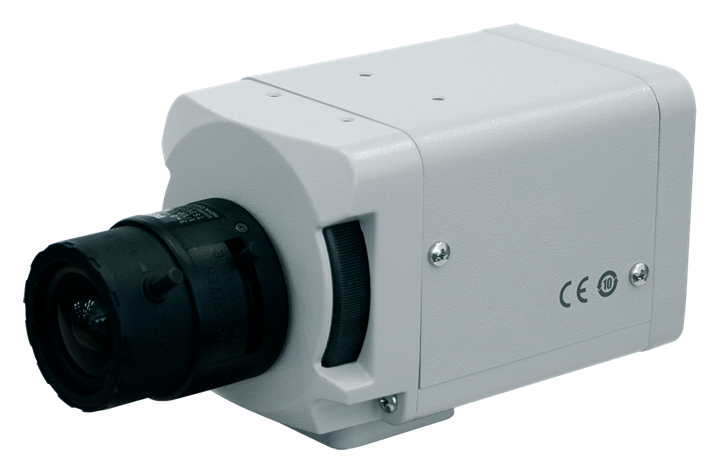

Full HD HD-SDI Camera (16:9)

Single sensor KP-HD1005V is small-size full HD camera. High sensitivity and performance with the latest digital code processing. 2.4 mega pixel camera, utilizing a new 1/2.86" high sensitive, 1080P, MOS sensor that produces a high definition picture at a frame rate of 30/25 fps progressive scan output Multifunction, like Gamma, Knee, Masking picture adjustment function, Long distance transmission function (when used with MU-HD101 Multi Unit, sold separately), Automatic iris control Camera can transmit full HD image at a long distance utilizing coaxial cable (Specific transmission distance based on which kind of the coaxial cable is used).

Features

• 1/2.8" CMOS HDTV Standard
• Effective pixel: 1936 x 1100
• Lens mount: C/CS-mount (C-mount adapter LA-D20 standard)
• Outputs: HD-SDI 1080p/50 & VBS
• Horizontal resolution: more than 800 TV line
• Min. illumination:
  0.015 lux (COLOR, F1.2 AGC:66dB, Gamma: High)
  0.001lux (B&W, F1.2 AGC:66dB, Gamma: High)
• S/N: > 50dB
• Shutter: PRESET = 1/30(1/25), 1/60(1/50), 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/15000, 1/37500(1/31250) seconds, AES, AES[1/30(1/25)], AES&LENS[1/1000], AES&LENS[1/2000], AES&LENS[1/5000] *( ) PAL mode VARIABLE = 1/33.54～1/37500(PAL: 1/27.95～1/31250)
• Functions: Chroma Level, Black Level, Detail, Gamma, Knee, Backlight Compensation & White Balance
• Auto iris lens output: DC/Video
• Interface: RS 232c for Remote Control
• Power: 12VDC or via Coax with MU-HD101 Multi Unit (sold as option)
• Dimensions: 64 (W) x 63 (H) x 103 (D) mm
• Weight: 330g
